Reconstruction from affine curvature using Picard iterations

The definite integrals in the Picard iteration are approximated with the trapezoid method.

> with(LinearAlgebra):


> trapezoid_approx := proc(L,s)
 local M,i;

 # Input an array of function values L and a mesh s
 # Output a new array of function values approximating the integral using the trapezoid method

 M := Array(1..ArrayNumElems(L),fill=Matrix(Dimension(L[1]))):

 for i from 2 to ArrayNumElems(L) do
   M[i] := .5*(L[i]+L[i-1])*(s[i]-s[i-1])+M[i-1]:
 end do:

 return M:

end proc:


The following procedure approximates n; Picard iterations for the matrix equation Values of K(s); are given at h; equally spaced mesh points from a given matrix function, in the below examples K; is the affine Cartan matrix.

> PicardIt := proc(K,n,s_0,s_L,mesh_pts)
 local A, U, k, s, i, g, gx, gy, h;
# Input, matrix function K, number of PIs, starting point, ending point, number of mesh points
 s := Array(1..mesh_pts,fill=s_0): #[s_0]:
 k := Array(1..mesh_pts): #[evalf(K(s_0))]:
 k[1] := evalf(K(s[1])):

 h := (s_L - s_0)/(mesh_pts-1):


 for i from 2 to mesh_pts do
   s[i] := s[i-1] + h:
   k[i] := evalf(K(s[i])):
 end do:

 U := Array(1..mesh_pts,fill=Matrix([[1,0],[0,1]])):
 A := U:
 for i from 1 to n do
   A := U + trapezoid_approx(Array(k.A),s):
 end do:

 g := trapezoid_approx(A,s):
 gx := [seq(g[i][1,1],i=1..mesh_pts)]:
 gy := [seq(g[i][1,2],i=1..mesh_pts)]:

 return gx,gy:
end proc:


A set up of the smooth bump functions that are used in constructing the examples seen in Section 4

> h := (r_1,r_2) -> exp(-1/(r_1-t))/(exp(-1/(r_1-t))+exp(-1/(t-r_2))):
g := (r_1,r_2) -> -exp(-1/(r_1-t))/(exp(-1/(r_1-t))+exp(-1/(t-r_2)))+1:
f := (r_1,r_2) -> piecewise(t<=r_1,0,
 t<(r_1+r_2)/2, g(r_1,(r_1+r_2)/2), t=(r_1+r_2)/2, 1,
 t<r_2, h((r_1+r_2)/2,r_2),0):


Two examples of reconstructions of curves with affine arclength parameterized affine curvatures μ__n; (α) = nperiodically extended from Section 4 with varrying values for n.

> n := 2/5:


> mu1 := s -> eval(n*Pi*(f(0,2)+1),t=s-2*floor(s/2))^2:


> K1 := s -> Matrix([[0,1],[-mu1(s),0]]):

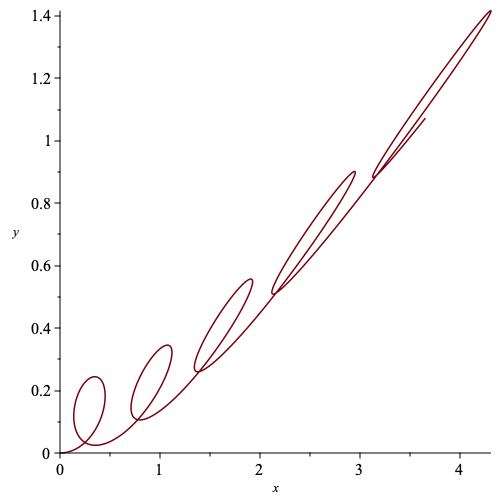

> gx1, gy1 := PicardIt(K1,200,0,22,1500):


> plot(gx1,gy1,labels=[x,y]);


Plot_2d


> n := 2/3:


> mu2 := s -> eval(n*Pi*(f(0,2)+1),t=s-2*floor(s/2))^2:


> K2 := s -> Matrix([[0,1],[-mu2(s),0]]):

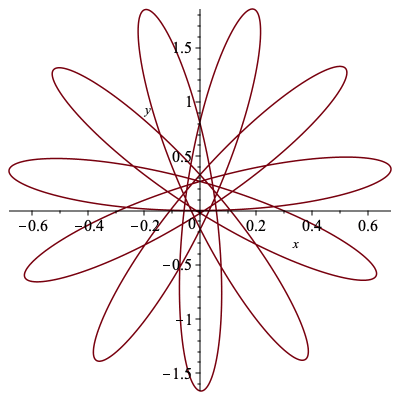

> gx2, gy2 := PicardIt(K2,200,0,10,1500):


> plot(gx2,gy2,labels=[x,y]);


Plot_2d


>
